| Model Number: | JP1132A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

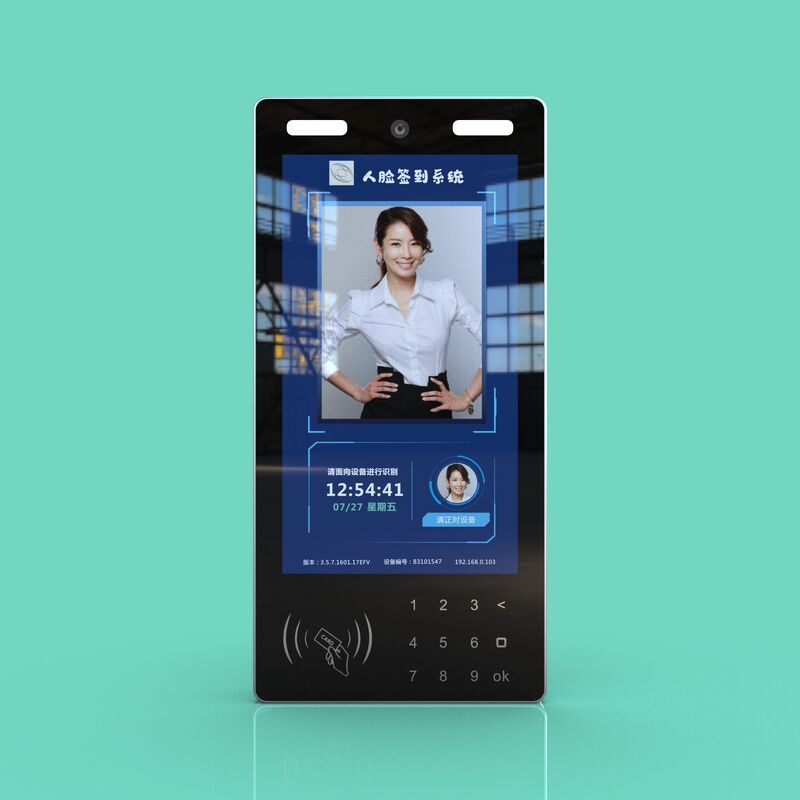

This 13-inch vertical screen wall-mounted facial recognition password access control machine is an identity verification device that integrates advanced facial recognition technology. It is specifically designed for visitor management and identity verification. With its large-sized touch screen, high-definition camera, and powerful processing capabilities, it provides users with a secure and convenient identity verification solution.
Technical Features:
1. High-definition Display: The device is equipped with a 13-inch IPS color LCD screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. Facial Recognition Technology: It adopts deep learning algorithms, supports 1:N face comparison, facial recognition distance is 0.3m - 2.0m, face comparison time is less than 0.2 seconds, and the face verification accuracy rate is ≥ 99%.
3. Multiple Authentication Methods: It supports multiple authentication methods such as face, card swiping (Mifare card/IC card, mobile phone NFC card, CPU card serial number, ID card serial number), password, etc., and can be flexibly combined to adapt to different security level application scenarios.
4. Network Connection: It supports various network connection methods such as TCP/IP, WIFI, etc., facilitating remote management and data synchronization.
Application Advantages:
Enhanced Security: Through biometric technology, it effectively avoids risks associated with password and fingerprint leakage, providing more secure privacy protection.
Improved Efficiency: The rapid identity verification process reduces waiting time and improves access efficiency.
Easy Management: It supports remote management and data export, facilitating personnel management and attendance statistics.
Application Scenarios:
Enterprise Office: Achieve quick attendance and access control for employees.
Residential Communities: Enhance community security and control visitor access.
Commercial Buildings: Conduct personnel identity verification and access control in shopping malls, office buildings, etc.
Public Services: Such as hospitals, schools, etc., provide secure identity verification and visitor management.
| 13.3-Inch Face Recognition Visual Intercom Device Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1080*1920 | |
| Brightness | 300cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light; selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Fill Light | White LED | |
| 4G | Optional | |
| Card Reader | Optional IC/ID/NFC/ID card reader; reading time <1S; card reading distance: 5-30MM | |
| Digital Keypad | 12-digit capacitive buttons | |
| Microphone | High-fidelity, noise-canceling microphone | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof; anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
| Model Number: | JP1132A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 340×295×30mm |
| Payment Terms: | T/T |
Product Overview:
This 13-inch vertical screen wall-mounted facial recognition password access control machine is an identity verification device that integrates advanced facial recognition technology. It is specifically designed for visitor management and identity verification. With its large-sized touch screen, high-definition camera, and powerful processing capabilities, it provides users with a secure and convenient identity verification solution.
Technical Features:
1. High-definition Display: The device is equipped with a 13-inch IPS color LCD screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. Facial Recognition Technology: It adopts deep learning algorithms, supports 1:N face comparison, facial recognition distance is 0.3m - 2.0m, face comparison time is less than 0.2 seconds, and the face verification accuracy rate is ≥ 99%.
3. Multiple Authentication Methods: It supports multiple authentication methods such as face, card swiping (Mifare card/IC card, mobile phone NFC card, CPU card serial number, ID card serial number), password, etc., and can be flexibly combined to adapt to different security level application scenarios.
4. Network Connection: It supports various network connection methods such as TCP/IP, WIFI, etc., facilitating remote management and data synchronization.
Application Advantages:
Enhanced Security: Through biometric technology, it effectively avoids risks associated with password and fingerprint leakage, providing more secure privacy protection.
Improved Efficiency: The rapid identity verification process reduces waiting time and improves access efficiency.
Easy Management: It supports remote management and data export, facilitating personnel management and attendance statistics.
Application Scenarios:
Enterprise Office: Achieve quick attendance and access control for employees.
Residential Communities: Enhance community security and control visitor access.
Commercial Buildings: Conduct personnel identity verification and access control in shopping malls, office buildings, etc.
Public Services: Such as hospitals, schools, etc., provide secure identity verification and visitor management.
| 13.3-Inch Face Recognition Visual Intercom Device Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1080*1920 | |
| Brightness | 300cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light; selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Fill Light | White LED | |
| 4G | Optional | |
| Card Reader | Optional IC/ID/NFC/ID card reader; reading time <1S; card reading distance: 5-30MM | |
| Digital Keypad | 12-digit capacitive buttons | |
| Microphone | High-fidelity, noise-canceling microphone | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof; anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
