| Model Number: | JP1134A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

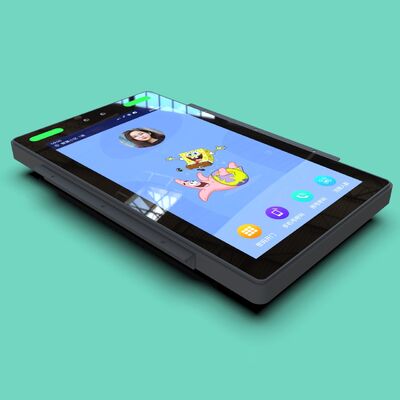

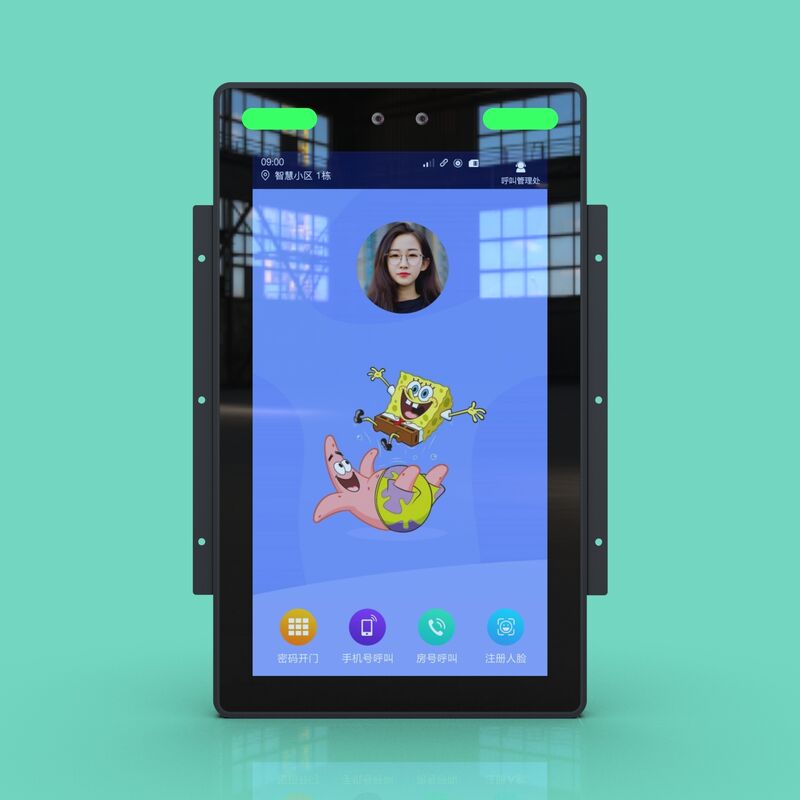

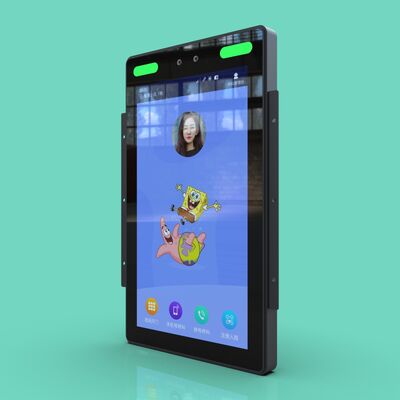

This 13-inch vertical screen wall-mounted facial recognition access control equipment is a high-performance intelligent access control device specially designed for places requiring advanced security control. It integrates advanced facial recognition technology, providing fast and accurate facial recognition functions.
Technical features:
1. High-definition touch screen: The device is equipped with a 13-inch capacitive touch screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. High-performance Android motherboard: Using a high-performance Android motherboard with 2GB of memory and 16GB of storage, it runs the Android system, ensuring stable operation and quick response.
3. Integrated high-definition camera: Supports infrared light illumination, enabling effective facial recognition even in low-light environments.
4. Facial recognition algorithm: Utilizes deep learning algorithms to achieve fast and accurate facial recognition, with an identification accuracy rate of up to 99.37% and an identification speed of 30 frames per second.
5. Local storage function: Identification records and alarm records can be stored locally, supporting storage for up to 180 days or more.
Application advantages:
Enhanced security: Through biometric technology, it effectively avoids risks associated with password and fingerprint leakage, providing more secure privacy protection.
Increased efficiency: The fast identification speed and accurate identification rate effectively improve work efficiency.
Contactless operation: Users do not need to directly touch the device; simply standing in front of the device naturally can complete identity verification, enhancing the convenience and hygiene safety of use.
Application scenarios:
Enterprise domain: Can be used in enterprise access control systems to enhance security and work efficiency.
Public service domain: Can be used to implement face login, sign-in, etc., improving service efficiency and management level.
Financial domain: Can be used to implement face payment, withdrawals, etc., enhancing payment security and convenience.
| 13.3-Inch Embedded Industrial Touchscreen Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 800cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Three-Color Indicator Light | Red, white, green | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| 4G | Optional | |
| Microphone | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Embedded Installation | |
|
| Model Number: | JP1134A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 13.3 inches. |
| Payment Terms: | T/T |
Product Overview:
This 13-inch vertical screen wall-mounted facial recognition access control equipment is a high-performance intelligent access control device specially designed for places requiring advanced security control. It integrates advanced facial recognition technology, providing fast and accurate facial recognition functions.
Technical features:
1. High-definition touch screen: The device is equipped with a 13-inch capacitive touch screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. High-performance Android motherboard: Using a high-performance Android motherboard with 2GB of memory and 16GB of storage, it runs the Android system, ensuring stable operation and quick response.
3. Integrated high-definition camera: Supports infrared light illumination, enabling effective facial recognition even in low-light environments.
4. Facial recognition algorithm: Utilizes deep learning algorithms to achieve fast and accurate facial recognition, with an identification accuracy rate of up to 99.37% and an identification speed of 30 frames per second.
5. Local storage function: Identification records and alarm records can be stored locally, supporting storage for up to 180 days or more.
Application advantages:
Enhanced security: Through biometric technology, it effectively avoids risks associated with password and fingerprint leakage, providing more secure privacy protection.
Increased efficiency: The fast identification speed and accurate identification rate effectively improve work efficiency.
Contactless operation: Users do not need to directly touch the device; simply standing in front of the device naturally can complete identity verification, enhancing the convenience and hygiene safety of use.
Application scenarios:
Enterprise domain: Can be used in enterprise access control systems to enhance security and work efficiency.
Public service domain: Can be used to implement face login, sign-in, etc., improving service efficiency and management level.
Financial domain: Can be used to implement face payment, withdrawals, etc., enhancing payment security and convenience.
| 13.3-Inch Embedded Industrial Touchscreen Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 800cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Three-Color Indicator Light | Red, white, green | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| 4G | Optional | |
| Microphone | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Embedded Installation | |
