Product Overview:

This product is a high-performance 8-inch vertical screen access control and attendance integrated machine. It adopts a wall-mounted installation design and is equipped with deep learning facial recognition algorithm. It supports three mainstream verification methods: facial recognition, IC card swiping, and QR code scanning. The device can operate independently or be managed through networking, and is widely used in enterprise attendance, smart parks, community unit doors, office building entrances and exits, and other indoor and outdoor scenarios.

Core functions and highlights:
1. Three verification methods, flexible adaptation
The device supports three identification methods simultaneously, which can meet the passage needs of different user groups:

Facial recognition: Uses a 2 million wide dynamic dual-eye camera, supports live body detection, and can effectively defend against photo and video forgery attacks. The face comparison time is ≤ 0.2~0.3 seconds per person, and the verification accuracy rate is ≥ 99%.

IC card swiping: Built-in 13.56 MHz RFID reading module, compliant with ISO 14443A/B standards, supports Mifare IC cards, NFC mobile phone cards, CPU cards, etc., and the swiping distance is ≥ 5 cm.

QR code scanning: Built-in QR code recognition module, supports users to present dynamic QR codes through mobile APP or mini program for passage, and also supports managers to generate temporary visitor QR codes through the cloud platform and set validity period and passage times.

2. 8-inch high-definition vertical screen, clear interaction experience

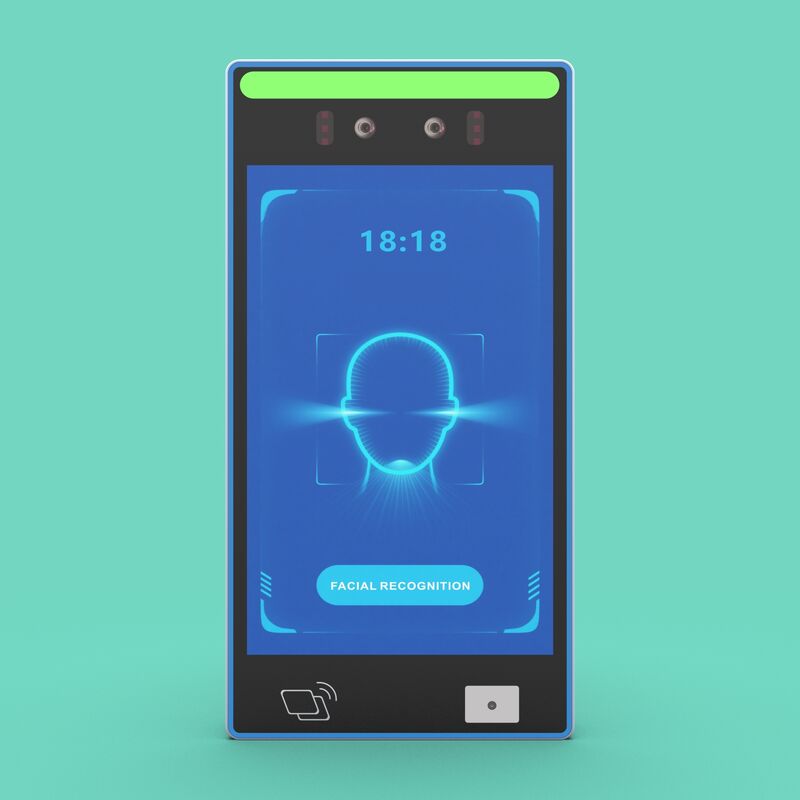

Equipped with an 8-inch IPS touch display screen, with a resolution of 1280×800. The vertical screen ratio fits the wall-mounted installation posture, the screen coverage rate is high, and the face collection process is visualized, making the operation intuitive and convenient.

3. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, it supports local offline 1:N face comparison. The face library can support up to 50,000 images, the card capacity is 50,000, and the record capacity is 200,000, meeting the attendance needs of medium and large enterprises.

4. Professional access control functions and rich interfaces

Disconnection continuous transmission: The event records generated when the device is offline will be automatically uploaded after reconnection, ensuring data does not get lost

Communication interfaces: Standard RJ45 100M network port, Wi-Fi, optional 4G expansion module, provides Wiegand input/output, RS485, door lock control, door magnet detection, etc. interfaces

5. Industrial-grade design, adaptable to multiple scenarios
Wall-mounted installation: Standard metal hanging plate, supports wall-mounted installation, compatible with standard 86 bottom box

Wide temperature range operation: Working temperature range is -30℃~60℃, adaptable to cold and hot environments

IP protection level: Some models can reach IP66/IP67 dust-proof and waterproof level, suitable for indoor and semi-outdoor scenarios

Applicable scenarios
Enterprise/Office Building: Employee attendance check-in, access control

Smart Park/Factory: Personnel passage control, attendance statistics

Government Institution/Financial Outlet: High-security identity verification

Smart Campus/Community: Campus entrances, unit access control
