| Model Number: | JP186A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

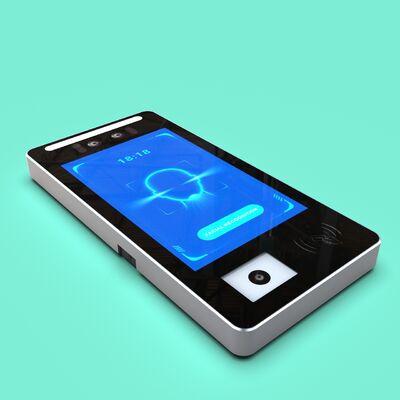

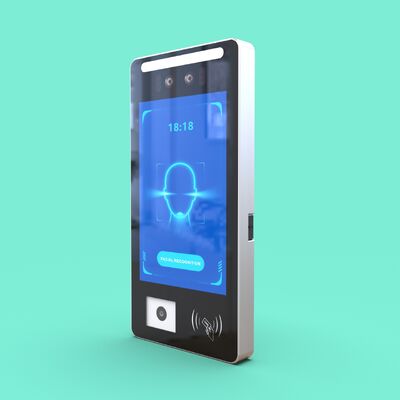

This product is a high-performance 8-inch wall-mounted access control integrated machine, integrating three mainstream verification methods: facial recognition, QR code scanning, and IC card swiping. It features an aluminum alloy body and tempered glass panel, equipped with a deep learning facial recognition algorithm, and supports dual-eye live body detection, effectively defending against forged attacks such as photos, videos, and 3D masks. The device is widely used in enterprise attendance, smart parks, community unit doors, office building entrances, and other places.
Core functions and highlights:
1. Three verification methods, flexible adaptation
The device supports all three identification methods simultaneously, meeting the passage needs of different user groups:
Facial recognition: Uses a 200,000-pixel wide dynamic dual-eye camera, supports live body detection, effectively defending against forged attacks such as photos, videos, and 3D masks. The face comparison time is ≤ 0.2~0.3 seconds per person, with a verification accuracy rate of ≥ 99%.
QR code scanning: Equipped with a QR code recognition module, supporting paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.
IC card swiping: Equipped with a 13.56 MHz RFID reading module, supporting Mifare IC cards, NFC mobile phone cards, CPU cards, etc.

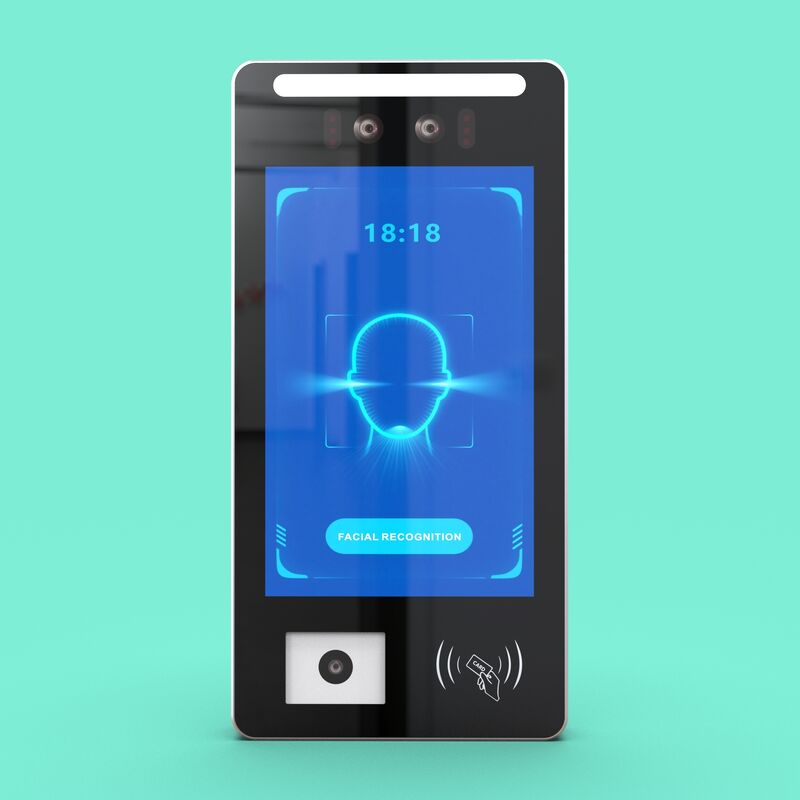

2. 8-inch high-definition vertical screen, clear interaction experience
Equipped with an 8-inch IPS touch display, with a resolution of 800×1280, the vertical screen ratio fits the wall-mounted installation posture. The screen coverage rate is high, and the face collection process is visualized, making the operation intuitive and convenient.
3. Deep learning algorithm, fast and accurate recognition
Based on deep learning algorithms, it supports local offline 1:N face comparison. The face database can support up to 50,000 images, with a record capacity of over 200,000. It supports offline transmission function, and the event records generated when the device is offline will be automatically re-uploaded after reconnection, ensuring no data loss.
4. Rich interfaces
Interface configuration: Standard with RJ45 100M network port, Wi-Fi, and optional 4G expansion module. Provides Wiegand input/output, RS485, relay output, door magnet detection, door opening button, etc. interfaces.
5. Industrial-grade design, wall-mounted installation

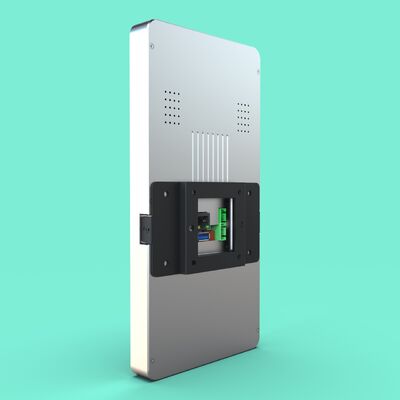

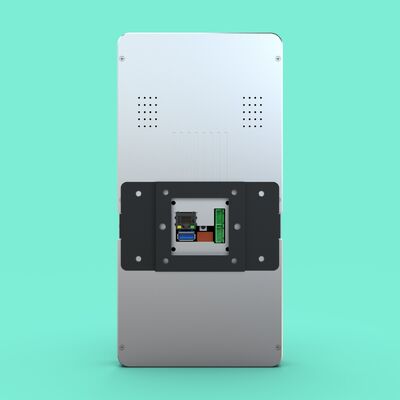

Wall-mounted installation: Standard with metal hanging plates, supporting wall-mounted installation, compatible with standard 86 bottom boxes.
Wide temperature range operation: Working temperature range is -30℃~65℃, suitable for cold and hot environments.
IP protection level: Some models can reach IP65~IP67 dust-proof and waterproof levels, supporting indoor and semi-outdoor scenarios.
Aluminum alloy body: Elegant and elegant, smooth lines, sturdy and durable.
| 8-Inch QR Code Card Reader All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V, current 3A, operating temperature-25℃～+75℃, humidity 5%~93%RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
| Model Number: | JP186A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 8-inch wall-mounted access control integrated machine, integrating three mainstream verification methods: facial recognition, QR code scanning, and IC card swiping. It features an aluminum alloy body and tempered glass panel, equipped with a deep learning facial recognition algorithm, and supports dual-eye live body detection, effectively defending against forged attacks such as photos, videos, and 3D masks. The device is widely used in enterprise attendance, smart parks, community unit doors, office building entrances, and other places.
Core functions and highlights:
1. Three verification methods, flexible adaptation
The device supports all three identification methods simultaneously, meeting the passage needs of different user groups:
Facial recognition: Uses a 200,000-pixel wide dynamic dual-eye camera, supports live body detection, effectively defending against forged attacks such as photos, videos, and 3D masks. The face comparison time is ≤ 0.2~0.3 seconds per person, with a verification accuracy rate of ≥ 99%.
QR code scanning: Equipped with a QR code recognition module, supporting paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.
IC card swiping: Equipped with a 13.56 MHz RFID reading module, supporting Mifare IC cards, NFC mobile phone cards, CPU cards, etc.
2. 8-inch high-definition vertical screen, clear interaction experience
Equipped with an 8-inch IPS touch display, with a resolution of 800×1280, the vertical screen ratio fits the wall-mounted installation posture. The screen coverage rate is high, and the face collection process is visualized, making the operation intuitive and convenient.
3. Deep learning algorithm, fast and accurate recognition
Based on deep learning algorithms, it supports local offline 1:N face comparison. The face database can support up to 50,000 images, with a record capacity of over 200,000. It supports offline transmission function, and the event records generated when the device is offline will be automatically re-uploaded after reconnection, ensuring no data loss.
4. Rich interfaces
Interface configuration: Standard with RJ45 100M network port, Wi-Fi, and optional 4G expansion module. Provides Wiegand input/output, RS485, relay output, door magnet detection, door opening button, etc. interfaces.
5. Industrial-grade design, wall-mounted installation
Wall-mounted installation: Standard with metal hanging plates, supporting wall-mounted installation, compatible with standard 86 bottom boxes.
Wide temperature range operation: Working temperature range is -30℃~65℃, suitable for cold and hot environments.
IP protection level: Some models can reach IP65~IP67 dust-proof and waterproof levels, supporting indoor and semi-outdoor scenarios.
Aluminum alloy body: Elegant and elegant, smooth lines, sturdy and durable.
| 8-Inch QR Code Card Reader All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V, current 3A, operating temperature-25℃～+75℃, humidity 5%~93%RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
