| Model Number: | K0 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
K0 Smart IoT Motherboard

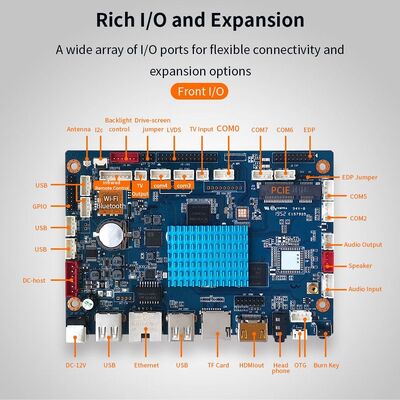

The K0 Smart IoT Motherboard is purpose-built for vending machines and smart retail applications, powered by the Allwinner A40i quad-core Cortex-A7 processor running at up to 1.2GHz. The integrated Mali-400MP2 GPU supports OpenGL ES 2.0 and hardware-accelerated 1080P video encoding and decoding — enabling smooth display output and efficient video capture for security or user interaction. What sets the K0 apart is its comprehensive vending-specific feature set: 6× configurable serial ports (2 TTL/RS-485 + 4 TTL/RS-232) for payment systems and sensors, CVBS TV input/output for analog camera support, 8× GPIO for peripheral control, and PoE-capable Ethernet for simplified cabling. With 9V–15V wide voltage input, -20°C to 70°C wide-temperature operation, and Android 7.1 support, the K0 delivers the reliability and connectivity needed for demanding vending and retail environments.
Purpose-Built for Vending and Retail: 6× serial ports connect to payment terminals, barcode scanners, and sensors; CVBS input for analog security cameras; GPIO for peripheral control — all the interfaces vending machines need, no adapters required.
1080P Hardware Encode + Decode: Unlike boards that only decode video, the K0 supports 1080P hardware encoding — capture and compress video from USB cameras for security monitoring or remote diagnostics without burdening the CPU.
CVBS TV Input/Output: Built-in CVBS input and output for analog camera support — connect legacy CCTV cameras or output composite video to secondary displays, simplifying integration with existing vending and retail infrastructure.
6× Configurable Serial Ports: 2× TTL/RS-485 + 4× TTL/RS-232 provide exceptional connectivity for payment systems, sensors, and controllers — flexible enough to adapt to different peripheral requirements.
PoE-Ready Ethernet: 10/100M Ethernet with 4-pin PoE header enables power and data over a single cable — simplify installation and reduce cabling costs in retail deployments.
Multiple Display Interfaces: LVDS, HDMI, MIPI-DSI (optional), eDP, and VGA (optional) — connect to virtually any display type from budget 1080P screens to higher-resolution panels.
Wide-Temperature Reliability: -20°C to 70°C operating temperature range ensures stable performance in outdoor vending machines, unheated warehouses, and cold chain environments.
Vending-Focused Design, Not Repurposed: The K0 isn't a general-purpose board adapted for vending — it's engineered with the specific interfaces vending machines need: 6 serial ports for payment systems and sensors, CVBS for security cameras, GPIO for peripheral control, and PoE for simplified cabling. Connect all your peripherals without external adapter boards.
1080P Encode + Decode — Security and Diagnostics Ready: Most boards in this class only decode video. The K0's 1080P hardware encoding enables real-time video capture from USB cameras for security monitoring, theft deterrence, and remote diagnostics — giving vending operators peace of mind and actionable insights.
CVBS for Legacy Camera Integration: CVBS input means you can connect existing analog security cameras without expensive digital converters — leverage your existing surveillance infrastructure while upgrading the vending machine's computing platform.
Reliability That Matters in the Field: Vending machines live in harsh environments — temperature swings, power fluctuations, and constant vibration. The K0's -20°C to 70°C operating range, 9V–15V wide input, and industrial-grade components ensure your machines keep running and generating revenue, not down for service calls.
Flexible Display Options, One Board: Whether you're building a budget-friendly machine with a 1080P screen or a premium model with a higher-resolution panel, the K0 supports LVDS, HDMI, MIPI-DSI, eDP, and VGA — one board supports the full product line, simplifying inventory and reducing development costs.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
