| Model Number: | M1 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
M1 Intelligent Commercial Display Motherboard
The M1 Intelligent Commercial Display Motherboard is a cost-effective platform designed for commercial display applications, powered by the Rockchip RK3188 quad-core Cortex-A9 processor running at up to 1.6GHz. The integrated Mali-400 MP4 GPU supports OpenGL ES 1.1/2.0 and provides 1080P hardware video decoding and encoding — delivering smooth playback for digital signage and advertising displays. With LVDS and HDMI 1.4 display interfaces (both supporting 1080P output), 8Ω 6W dual amplifier output, 2× USB ports, and 4× configurable serial ports, the M1 offers essential connectivity for commercial display applications. Featuring 9V–15V wide voltage input, 0°C to 70°C operating temperature, and Android 4.4.4/5.1.1 support, the M1 is the ideal entry-level solution for cost-sensitive digital signage, menu boards, and advertising display projects.
Cost-Optimized for Volume Commercial Display Deployments: The RK3188 platform delivers proven performance at a competitive price point — ideal for large-scale digital signage networks where cost efficiency matters as much as reliability.
1080P Hardware Encode + Decode: Supports both 1080P video decoding and encoding — play high-quality content smoothly while efficiently capturing video for security monitoring or remote diagnostics.
Dual Display Interfaces for Panel Flexibility: LVDS for direct panel connection + HDMI 1.4 for external displays — one board supports both integrated and external display configurations.
Built-in Audio Amplifier: 8Ω 6W dual amplifier drives speakers directly — eliminates the need for external amplifier boards in signage applications with audio.

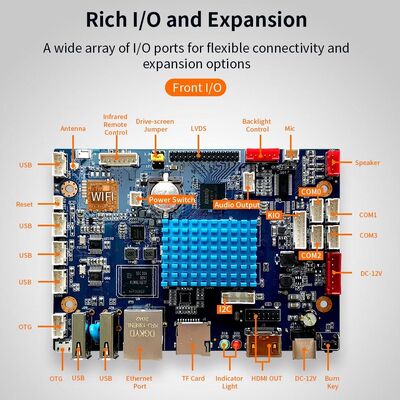

4× Configurable Serial Ports: 2× TTL + 2× TTL/RS-232 — connect to controllers, sensors, or peripheral devices in interactive signage applications.
Essential Connectivity: 10/100M Ethernet, Wi-Fi (802.11 b/g/n), optional Bluetooth, USB, and GPIO — all the connectivity needed for standalone or network-connected signage.
Proven Platform for Cost-Conscious Signage Projects: The RK3188 is a mature, battle-tested platform with years of deployment in commercial displays worldwide. Reduce development risk and accelerate time-to-market with a stable, well-supported solution that's proven to work reliably 24/7 in retail environments.
1080P Encode + Decode — Security-Ready: Digital signage often requires security monitoring. The M1's 1080P hardware encoding enables video capture from connected cameras without additional hardware — making it a complete solution for signage deployments where theft deterrence is a concern.
One Board for Multiple Signage Applications: Whether you're building a standalone advertising display with LVDS panel, a networked digital menu board with HDMI output, or an interactive kiosk with serial-connected peripherals — the M1's interface mix handles it all, simplifying SKU management.
Reliability in Retail Environments: Consumer-grade devices fail in retail — they can't handle 24/7 operation, temperature fluctuations, or power variations. The M1's wide voltage input, fanless design, and industrial-grade components keep digital signage running reliably, ensuring your advertising revenue stream is never interrupted.
Long-Term Availability for Commercial Lifecycles: Commercial display projects often run 3-5 years with consistent hardware requirements. The M1 is supported with long-term availability — reduce requalification costs and maintain consistent product quality across multiple production batches.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
