H-3568 Smart HMI Motherboard

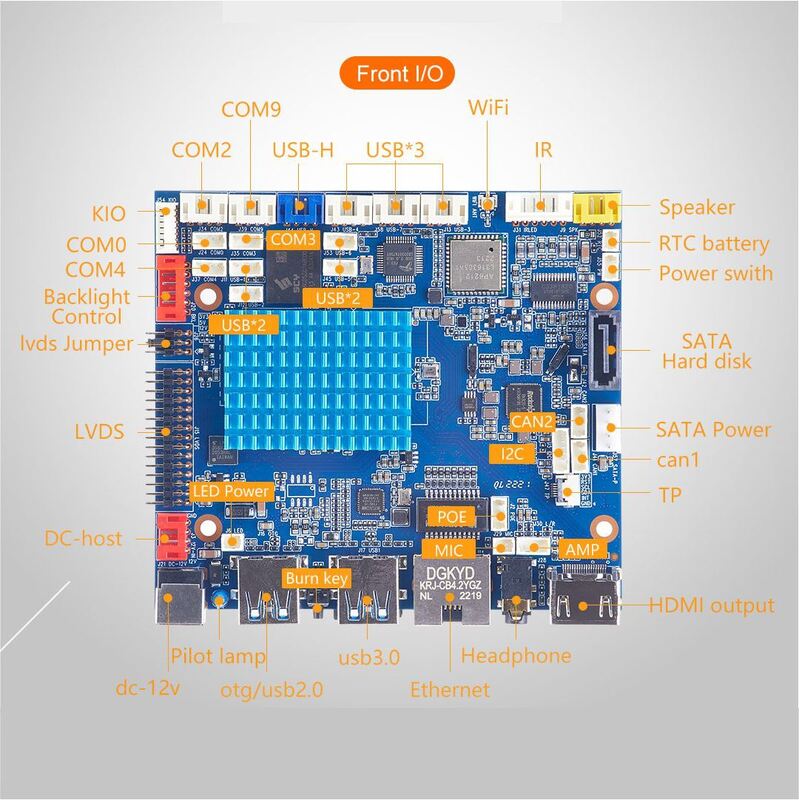

The H-3568 Smart HMI Motherboard delivers exceptional performance for demanding edge intelligence applications, powered by the Rockchip RK3568 quad-core Cortex-A55 processor running at up to 2.0GHz — the highest clock speed in the RK356x series. The built-in 1 TOPS NPU enables efficient on-device AI inference for face recognition, object detection, and intelligent decision-making without cloud dependency. With support for up to 8GB LPDDR4 memory, dual MIPI-CSI camera interface, and 2× CAN Bus ports, the H-3568 is purpose-built for advanced commercial robots, face recognition terminals, and edge computing gateways. The board features four display interfaces (LVDS up to 1080P, HDMI 2.0a up to 4K, MIPI-DSI, and eDP up to 1080P), 2× USB 3.0 ports, Gigabit Ethernet, SATA 3.0 for mass storage, and 5× configurable serial ports (4 TTL/RS-232 + 1 TTL/RS-485). Ships with Android 11, with Linux Buildroot/Debian 10/Ubuntu 18.04 options available.
2.0GHz Peak Performance: The RK3568's 2.0GHz clock speed delivers the fastest processing in the RK356x series — significantly reducing AI inference latency and enabling smoother, more responsive applications.
Built-in 1 TOPS NPU for Edge AI: On-device AI inference for face recognition, object detection, and intelligent decision-making — no cloud dependency, no latency, lower bandwidth costs, and enhanced privacy.

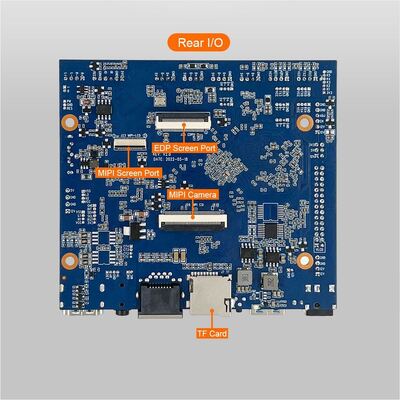

Dual MIPI-CSI Camera Interface: 40-pin FPC dual MIPI-CSI port supports stereo vision and dual-camera setups — ideal for face recognition with liveness detection, depth sensing, and advanced computer vision applications.
2× CAN Bus for Industrial Integration: Dual CAN Bus ports enable seamless integration with industrial automation systems, robotic controllers, and automotive-grade peripherals — essential for commercial robots and industrial edge computing.
SATA 3.0 + USB 3.0 + Gigabit Ethernet: SATA 3.0 for mass storage, USB 3.0 for 10× faster data transfer, and Gigabit Ethernet for high-speed networking — the complete connectivity suite for data-intensive edge applications.
Massive Memory Support: Supports up to 8GB LPDDR4 memory — ample capacity for AI model loading, multitasking, and memory-intensive applications like face recognition databases and video analytics.
Highest Performance in the RK356x Series: At 2.0GHz, the RK3568 outperforms other RK356x platforms — faster face recognition, quicker AI inference, and smoother multitasking for demanding applications like commercial robots and edge gateways.
CAN Bus for Robotics and Automation: 2× CAN Bus ports enable direct communication with robotic controllers, motor drivers, and industrial sensors — no external CAN adapters needed, reducing BOM complexity and simplifying integration.
Complete Edge AI Platform: NPU + dual MIPI-CSI + SATA 3.0 + USB 3.0 + Gigabit Ethernet + CAN Bus — the H-3568 combines everything needed for advanced edge AI applications in one compact 100mm × 90mm board.
Built for Commercial Robots: Autonomous mobile robots, service robots, and delivery robots require vision, processing power, storage, and industrial communication. The H-3568 delivers with dual cameras for perception, NPU for decision-making, SATA for data logging, and CAN Bus for motor control.
Future-Ready Memory and Storage: 8GB LPDDR4 + SATA 3.0 support provides ample capacity for AI models, map data, video footage, and application code — future-proof your product for evolving requirements without hardware changes.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
