| Model Number: | H-3399 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
H-3399 Smart HMI Motherboard

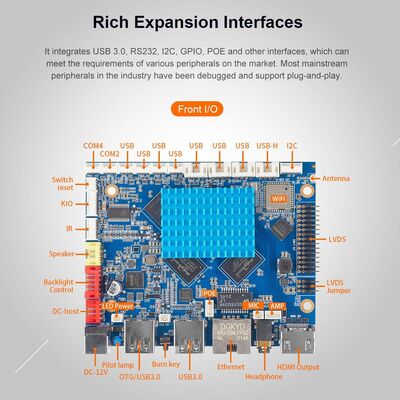

The H-3399 Smart HMI Motherboard delivers flagship performance for demanding human-machine interface applications, powered by the Rockchip RK3399 hexa-core processor (dual Cortex-A72 @ 1.8GHz + quad Cortex-A53 @ 1.4GHz). This big.LITTLE architecture provides exceptional computing power for AI-driven applications, making it ideal for service robots, face detection and recognition systems, industrial control equipment, and interactive kiosks. The Mali-T860 GPU supports 4K hardware decoding via HDMI 2.0a, while the board offers four display interfaces — LVDS (1080P), HDMI 2.0a (4K), MIPI-DSI, and eDP (1080P) — providing unmatched display flexibility. With USB 3.0 ports, Gigabit Ethernet, 8Ω 6W dual amplifier output, CTIA 4-pole headset jack, differential MIC input, and support for Android 7.1/8.1/9.0 and Linux (Buildroot/Debian 9/Ubuntu 18.04), the H-3399 is the ultimate platform for advanced HMI and edge intelligence applications.
Hexa-Core big.LITTLE Architecture: The RK3399's dual Cortex-A72 cores handle intensive AI inference and multimedia processing while quad Cortex-A53 cores manage background tasks — delivering desktop-class performance with excellent power efficiency.
Four Display Interfaces for Ultimate Flexibility: LVDS + HDMI 2.0a (4K) + MIPI-DSI + eDP — support virtually any display technology, from industrial panels to 4K monitors, without hardware redesign.
USB 3.0 + Gigabit Ethernet: USB 3.0 delivers 10× faster data transfer than USB 2.0 for high-speed camera uploads and firmware updates, while Gigabit Ethernet ensures fast, reliable network connectivity for cloud-based services and remote management.
Multi-OS Support: Android 7.1/8.1/9.0 and Linux (Buildroot/Debian 9/Ubuntu 18.04) — choose the platform that best fits your application, from Android apps to custom Linux development.
Built-in Audio Amplifier: 8Ω 6W dual amplifier drives speakers directly — no external amplifier board needed for voice prompts, alarm notifications, or audio feedback.
5MP Camera Support: Supports USB cameras up to 5MP — high-resolution image capture for face recognition and visual inspection applications.
AI-Ready Processing Power: The RK3399 provides the compute headroom needed for on-device AI inference — run face detection, object recognition, and machine learning models directly on the board. No cloud latency, no external NPU required (though expansion is available).
Most Display Interfaces in the HMI Lineup: With LVDS, HDMI 2.0a (4K), MIPI-DSI, and eDP, the H-3399 offers unmatched display flexibility — adapt to any panel technology without board changes.
Built for Robotics and Intelligent Systems: Service robots, face recognition terminals, and industrial controllers demand both processing power and connectivity. The H-3399 delivers with hexa-core performance, USB 3.0, Gigabit Ethernet, and flexible OS options.
Enterprise-Grade Connectivity: USB 3.0 and Gigabit Ethernet provide the high-speed data transfer essential for AI applications — fast camera uploads, real-time cloud communication, and large data transfers.
Operating System Freedom: Whether you're building on Android or Linux, the H-3399 supports both — choose the platform that fits your development team's expertise and application requirements.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
| Model Number: | H-3399 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
H-3399 Smart HMI Motherboard
The H-3399 Smart HMI Motherboard delivers flagship performance for demanding human-machine interface applications, powered by the Rockchip RK3399 hexa-core processor (dual Cortex-A72 @ 1.8GHz + quad Cortex-A53 @ 1.4GHz). This big.LITTLE architecture provides exceptional computing power for AI-driven applications, making it ideal for service robots, face detection and recognition systems, industrial control equipment, and interactive kiosks. The Mali-T860 GPU supports 4K hardware decoding via HDMI 2.0a, while the board offers four display interfaces — LVDS (1080P), HDMI 2.0a (4K), MIPI-DSI, and eDP (1080P) — providing unmatched display flexibility. With USB 3.0 ports, Gigabit Ethernet, 8Ω 6W dual amplifier output, CTIA 4-pole headset jack, differential MIC input, and support for Android 7.1/8.1/9.0 and Linux (Buildroot/Debian 9/Ubuntu 18.04), the H-3399 is the ultimate platform for advanced HMI and edge intelligence applications.
Hexa-Core big.LITTLE Architecture: The RK3399's dual Cortex-A72 cores handle intensive AI inference and multimedia processing while quad Cortex-A53 cores manage background tasks — delivering desktop-class performance with excellent power efficiency.
Four Display Interfaces for Ultimate Flexibility: LVDS + HDMI 2.0a (4K) + MIPI-DSI + eDP — support virtually any display technology, from industrial panels to 4K monitors, without hardware redesign.
USB 3.0 + Gigabit Ethernet: USB 3.0 delivers 10× faster data transfer than USB 2.0 for high-speed camera uploads and firmware updates, while Gigabit Ethernet ensures fast, reliable network connectivity for cloud-based services and remote management.
Multi-OS Support: Android 7.1/8.1/9.0 and Linux (Buildroot/Debian 9/Ubuntu 18.04) — choose the platform that best fits your application, from Android apps to custom Linux development.
Built-in Audio Amplifier: 8Ω 6W dual amplifier drives speakers directly — no external amplifier board needed for voice prompts, alarm notifications, or audio feedback.
5MP Camera Support: Supports USB cameras up to 5MP — high-resolution image capture for face recognition and visual inspection applications.
AI-Ready Processing Power: The RK3399 provides the compute headroom needed for on-device AI inference — run face detection, object recognition, and machine learning models directly on the board. No cloud latency, no external NPU required (though expansion is available).
Most Display Interfaces in the HMI Lineup: With LVDS, HDMI 2.0a (4K), MIPI-DSI, and eDP, the H-3399 offers unmatched display flexibility — adapt to any panel technology without board changes.
Built for Robotics and Intelligent Systems: Service robots, face recognition terminals, and industrial controllers demand both processing power and connectivity. The H-3399 delivers with hexa-core performance, USB 3.0, Gigabit Ethernet, and flexible OS options.
Enterprise-Grade Connectivity: USB 3.0 and Gigabit Ethernet provide the high-speed data transfer essential for AI applications — fast camera uploads, real-time cloud communication, and large data transfers.
Operating System Freedom: Whether you're building on Android or Linux, the H-3399 supports both — choose the platform that fits your development team's expertise and application requirements.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
