| Model Number: | C300 Mainboard with Box |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
C300 Industrial-Grade Compact General-Purpose Motherboard Box

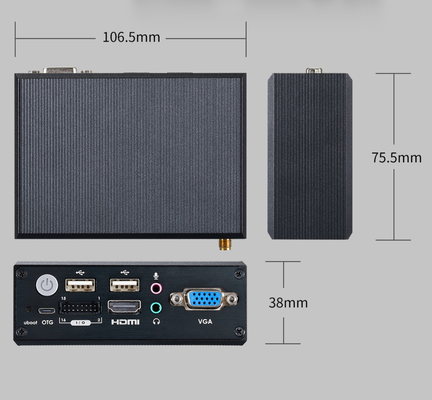

Powered by the Rockchip RK3288 quad-core processor running at up to 1.8GHz, the C300 Industrial-Grade Compact General-Purpose Motherboard Box delivers reliable performance in a rugged, space-saving 106.5mm × 75.5mm × 38mm enclosure. This complete box solution eliminates the need for custom casing — ready to deploy straight out of the box. The integrated Mali-T764 GPU supports 4K hardware decoding via HDMI 2.0, while dual independent displays (HDMI 4K + VGA 1080P) provide flexible video output for a wide range of applications. Designed for high-traffic environments, the C300 features 4× RS232 serial ports (configurable to TTL), 4× USB 2.0 ports, GPIO, and optional 4G connectivity — making it ideal for gaming machines, treadmills, smart signage, and self-service kiosks. The onboard RTC with CR1220 battery backup supports scheduled power-on/off, while the 9V–15V wide voltage input and -20°C to 70°C industrial temperature range ensure reliable operation in demanding conditions. Ships with Android 5.1/6.0/7.1 or Linux, with open API SDK available for custom development.
Ready-to-Deploy Box Solution: Unlike bare motherboards, the C300 comes in a compact, rugged enclosure — mount it directly inside arcade cabinets, fitness equipment, or kiosks. No custom casing design, no assembly headaches, faster time-to-market.
Built for High-Traffic Environments: -20°C to 70°C operating temperature, wide voltage 9V–15V input, and rugged construction make the C300 ideal for gaming machines, fitness equipment, and public kiosks that run 24/7 in demanding conditions.

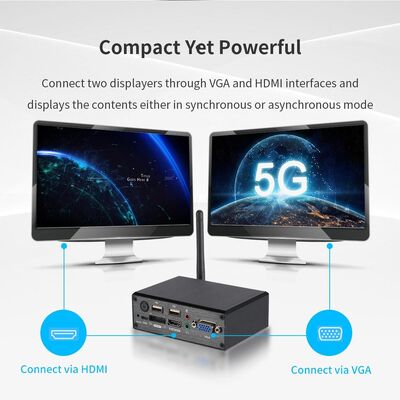

Dual Independent Displays with 4K Support: HDMI 2.0 output up to 4K + VGA output up to 1080P — run engaging promotional content on the main screen while displaying control interfaces or dashboards on the secondary display.

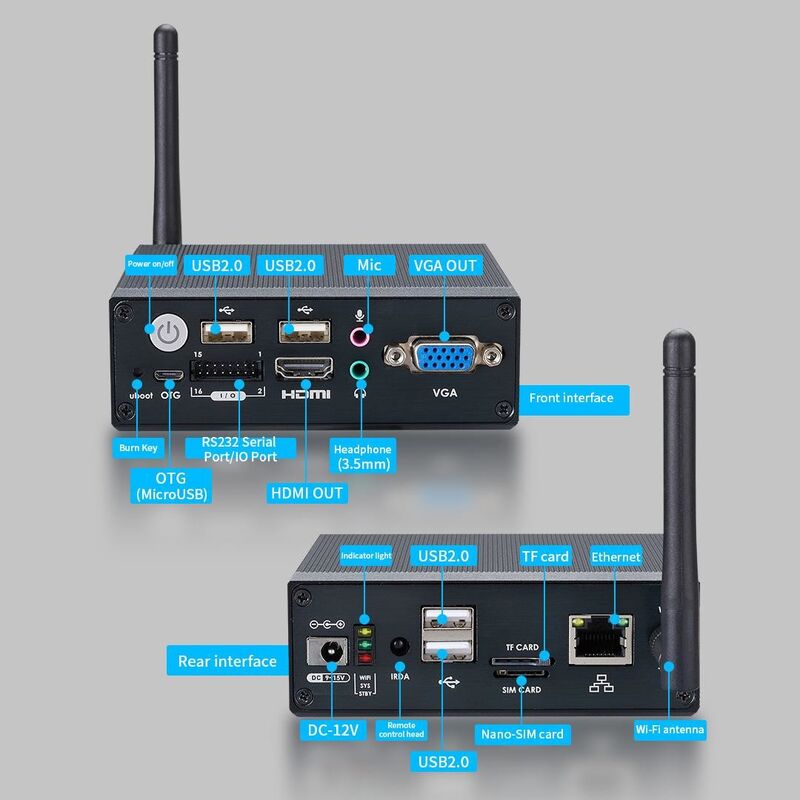

Rich Connectivity for Diverse Peripherals: 4× RS232 serial ports (configurable to TTL) + 4× USB 2.0 + GPIO + optional 4G + Wi-Fi + Ethernet — easily connect to ticket printers, card readers, scanners, sensors, and payment terminals.
Flexible OS Options: Supports Android 5.1/6.0/7.1 and Linux — choose the platform that best fits your application, whether it's Android apps or custom Linux development.
Purpose-Built for Amusement and Fitness: The C300 isn't just a general-purpose board — it's designed specifically for gaming machines, slot machines, treadmills, and exercise equipment. 4× RS232 ports connect to peripherals like coin acceptors, ticket dispensers, and fitness sensors, while the rugged enclosure withstands the wear and tear of public use.
No Custom Enclosure Needed: The C300 comes as a complete box solution — no need to spend time and money on custom casing design, thermal management, or mounting considerations. Just mount it and go.
2-in-1 Display Solution: Drive both an engaging 4K main display for user interaction and a secondary VGA monitor for operator controls or dashboards simultaneously — perfect for arcade cabinets and self-service kiosks.
Industrial-Grade Reliability in Compact Size: With -20°C cold start capability, 9V–15V wide voltage tolerance, and a ruggedized design, the C300 performs reliably in environments where consumer-grade boards would fail — from freezing warehouses to hot arcade halls.
Future-Proof with Linux Support: Beyond Android, the C300 supports Linux — giving developers the flexibility to build custom, lightweight, and secure applications for specialized use cases.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
