| Model Number: | VPC-3588 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |

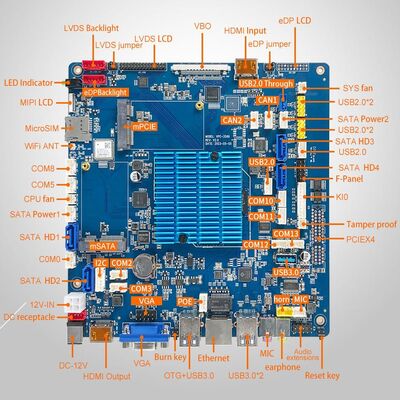

VPC-3588 AI Industrial Computing Motherboard
The VPC-3588 AI Industrial Computing Motherboard delivers flagship AI performance in a standard Mini-ITX form factor (170mm × 170mm), offering seamless compatibility with X86 chassis for easy integration into industrial systems. Powered by the Rockchip RK3588 octa-core processor (quad Cortex-A76 @ 2.4GHz + quad Cortex-A55) with a built-in 6 TOPS NPU, this board handles the most demanding AI workloads — from machine vision and deep learning inference to real-time analytics — all on-device without cloud dependency. What sets the VPC-3588 apart is its 8K display output via HDMI 2.1, HDMI input for video capture, 4× SATA 3.0 ports, mSATA, and optional PCle graphics card slot for GPU expansion — delivering exceptional storage and graphics flexibility. Additional features include 9× configurable serial ports, 2× CAN Bus, Wi-Fi 6, Bluetooth 5.0, 4G expansion, and wide-temperature operation from -20°C to 70°C. With Android 12.0 and Linux support, the VPC-3588 is the ultimate platform for AI-powered industrial computers, all-in-one touch systems, and high-performance edge computing applications.
6 TOPS NPU for Heavy AI Workloads: Built-in neural processing unit delivers powerful AI inference for machine vision, object detection, and deep learning models — run complex neural networks directly on the device without external accelerators or cloud dependency.
8K Display with HDMI Input: HDMI 2.1 output supports up to 8K resolution for stunning ultra-HD visuals, while HDMI 2.0 input enables video capture from external sources — perfect for video walls, surveillance systems, and high-end HMI applications.
Massive Storage Flexibility: 4× SATA 3.0 ports + 1× mSATA support large-scale local storage — build high-capacity industrial computers with RAID configurations for data redundancy and video storage.
9× Configurable Serial Ports: 1× TTL, 2× TTL/RS-232/RS-485, 2× TTL/RS-232, and 4× extended TTL/RS-232 — unmatched serial connectivity for industrial sensors, controllers, and legacy equipment.
PCle Graphics Card Expansion: Optional 64-pin PCle x4 slot supports discrete graphics cards — expand GPU capabilities for demanding graphics rendering, video processing, or additional AI acceleration.
2× CAN Bus for Industrial Communication: Dual CAN Bus interfaces enable seamless integration with industrial automation systems, robotic controllers, and automotive-grade peripherals.
Wi-Fi 6 + Bluetooth 5.0: Next-gen wireless connectivity with Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.0 — fast, reliable communication in crowded industrial environments.
Wide-Temperature Reliability: -20°C to 70°C operating temperature range — stable performance in demanding industrial environments.
6 TOPS NPU — Industrial AI That Works: The 6 TOPS NPU isn't just a number — it's the difference between running one AI model and running multiple models simultaneously. For machine vision, defect detection, and predictive maintenance, this is the level of AI performance that industrial applications require, delivered right at the edge.
8K + HDMI Input — The Complete Visual Solution: Most industrial boards offer display output only. The VPC-3588 delivers 8K output for stunning ultra-HD visuals and HDMI input for video capture — enabling picture-in-picture, security camera integration, and video conferencing on the same system.
PCle x4 Graphics Expansion — Unmatched Flexibility: Need even more graphics or AI processing power? The optional PCle x4 slot supports discrete graphics cards — from GPU acceleration for complex AI models to high-end rendering for medical imaging or 3D visualization. No other ARM board offers this level of graphics expandability.
9 Serial Ports + 2 CAN Bus — Built for Industrial Integration: Serial ports remain essential for industrial equipment — PLCs, sensors, and legacy controllers. With 9× configurable serial ports and 2× CAN Bus interfaces, the VPC-3588 connects to more industrial peripherals than any other board in its class, eliminating the need for external adapters and simplifying system design.
Storage Without Limits: 4× SATA 3.0 ports + mSATA support means you're never constrained by storage capacity. Build RAID arrays for data redundancy, store months of video footage, or maintain large AI model datasets — all on a single 170mm × 170mm board.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
