| Model Number: | JP1102A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview
In today's era of rapid development of smart offices and smart communities, access control equipment is no longer merely a "door-locking" tool; it has become a window reflecting the corporate image and the efficiency of passage. The 10.1-inch vertical screen wall-mounted facial recognition + QR code access control integrated machine has emerged in response to this trend - this is a multi-modal access control and attendance terminal that integrates deep learning facial recognition and QR code scanning. The device adopts a 10.1-inch high-definition vertical screen and a wall-mounted installation design, widely used in enterprise lobbies, smart parks, office buildings, campuses, etc., achieving a seamless experience of "swiping your face to pass", while supporting QR code visitor authorization, significantly improving the efficiency of visitor management.
Core value: Vertical screen design + multi-modal recognition, balancing efficiency and appearance

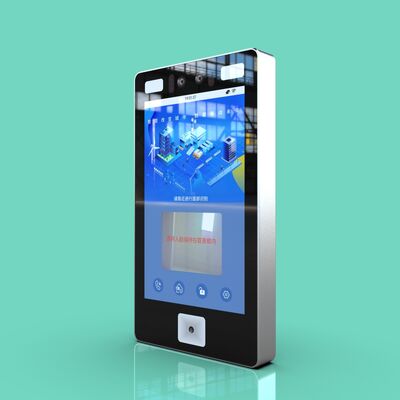

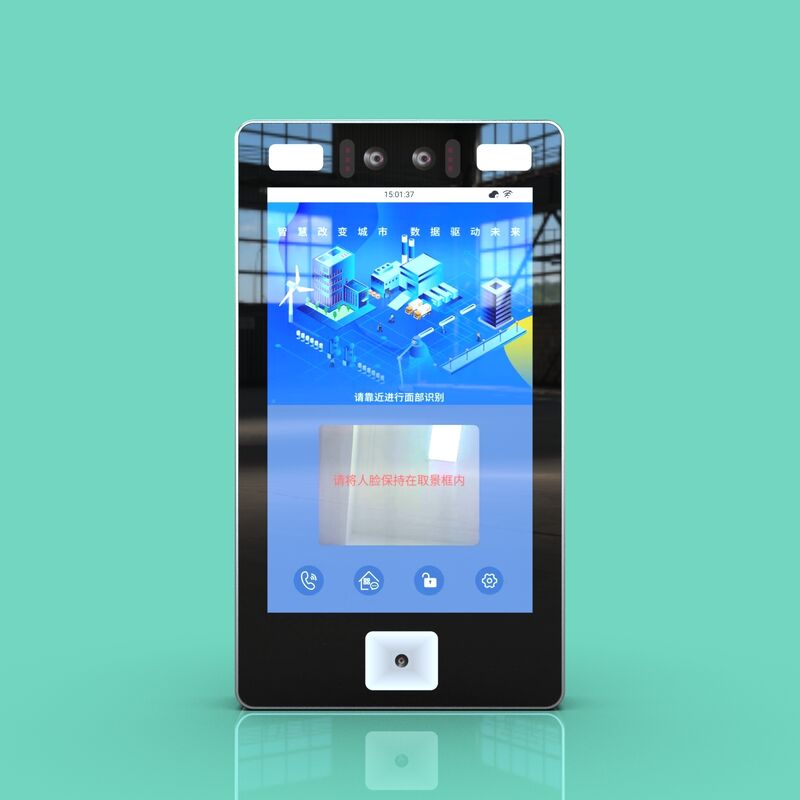

1. 10.1-inch vertical screen, achieving both interaction experience and architectural aesthetics
Unlike traditional horizontal screen devices, this terminal adopts a 10.1-inch vertical screen design (resolution 800×1280), with a screen ratio more in line with the perspective habits of people operating while standing in the access control scenario. The vertical screen design can fully display the face frame during face capture, providing clear feedback on the recognition results; when in standby mode, it can cycle through enterprise promotional posters or notice announcements, transforming the access point into an information display window, enhancing the technological feel and brand image of the lobby.
3. Dual-lens live body detection, financial-level security anti-counterfeiting
Equipped with 2 million wide dynamic dual-lens cameras (RGB + IR), supporting dual-lens infrared live body detection, it can effectively defend against photo, video, 3D mask, etc. forgery attacks. Even in complex lighting conditions such as backlighting and low light, the recognition accuracy can still reach ≥99%. The device supports a recognition distance of 0.4 meters to 2 meters, suitable for users of different heights.
4. Deep learning algorithm, large capacity, high concurrency
Based on deep learning algorithms, the device supports local offline 1:N face comparison, with a face database capacity of up to 50,000, card capacity of 500,000, and event records of over 500,000. Even in a million-person face database, the recognition speed remains ≤0.2 seconds per person, ensuring smooth passage during peak hours.
5. Android 11 open platform, flexible expansion and integration
The device is equipped with the Android 11 operating system, providing an open application ecosystem and secondary development interfaces. It supports remote management via the Web (personnel management, parameter configuration, event query), and provides standard SDK and API interfaces, allowing for easy integration with third-party attendance systems, OA platforms, or cloud access control management platforms.
6. Industrial-grade design, convenient and reliable wall-mounted installation
Body craftsmanship: Aluminum alloy CNC precision engraving body + tempered glass panel, combining texture and durability
Installation method: Standard wall-mounted metal plate, supporting wall-mounted installation, installation is convenient and stable
Wide temperature range operation: Working temperature range -20℃ to 70℃, suitable for indoor and semi-outdoor environments
Protection level: The entire machine can reach IP54 or higher protection level, dustproof and splash-proof
Interfaces and network: Seamless integration with existing systems
Communication method
Wired Network: RJ45 100/1000 Mbps Ethernet ports
Wireless Network: Optional Wi-Fi (2.4G/5G dual-band) or 4G all-network module, suitable for scenarios with inconvenient wiring
USB Interface: Supports importing and exporting personnel data and firmware upgrade via USB drive
Access Control Interface
Wiegand input/output (Wiegand 26/34), compatible with mainstream access control controllers
RS485/RS232 Serial Ports: Expandable for external devices such as ID card readers and QR code scanners
Relay Output: Directly control the opening of electric locks
| 10.1-Inch QR Code + Face Recognition Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 10.1 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93% RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
|
| Model Number: | JP1102A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 299 × 197 × 35 mm |
| Payment Terms: | T/T |
Product Overview
In today's era of rapid development of smart offices and smart communities, access control equipment is no longer merely a "door-locking" tool; it has become a window reflecting the corporate image and the efficiency of passage. The 10.1-inch vertical screen wall-mounted facial recognition + QR code access control integrated machine has emerged in response to this trend - this is a multi-modal access control and attendance terminal that integrates deep learning facial recognition and QR code scanning. The device adopts a 10.1-inch high-definition vertical screen and a wall-mounted installation design, widely used in enterprise lobbies, smart parks, office buildings, campuses, etc., achieving a seamless experience of "swiping your face to pass", while supporting QR code visitor authorization, significantly improving the efficiency of visitor management.
Core value: Vertical screen design + multi-modal recognition, balancing efficiency and appearance
1. 10.1-inch vertical screen, achieving both interaction experience and architectural aesthetics
Unlike traditional horizontal screen devices, this terminal adopts a 10.1-inch vertical screen design (resolution 800×1280), with a screen ratio more in line with the perspective habits of people operating while standing in the access control scenario. The vertical screen design can fully display the face frame during face capture, providing clear feedback on the recognition results; when in standby mode, it can cycle through enterprise promotional posters or notice announcements, transforming the access point into an information display window, enhancing the technological feel and brand image of the lobby.
3. Dual-lens live body detection, financial-level security anti-counterfeiting
Equipped with 2 million wide dynamic dual-lens cameras (RGB + IR), supporting dual-lens infrared live body detection, it can effectively defend against photo, video, 3D mask, etc. forgery attacks. Even in complex lighting conditions such as backlighting and low light, the recognition accuracy can still reach ≥99%. The device supports a recognition distance of 0.4 meters to 2 meters, suitable for users of different heights.
4. Deep learning algorithm, large capacity, high concurrency
Based on deep learning algorithms, the device supports local offline 1:N face comparison, with a face database capacity of up to 50,000, card capacity of 500,000, and event records of over 500,000. Even in a million-person face database, the recognition speed remains ≤0.2 seconds per person, ensuring smooth passage during peak hours.
5. Android 11 open platform, flexible expansion and integration
The device is equipped with the Android 11 operating system, providing an open application ecosystem and secondary development interfaces. It supports remote management via the Web (personnel management, parameter configuration, event query), and provides standard SDK and API interfaces, allowing for easy integration with third-party attendance systems, OA platforms, or cloud access control management platforms.
6. Industrial-grade design, convenient and reliable wall-mounted installation
Body craftsmanship: Aluminum alloy CNC precision engraving body + tempered glass panel, combining texture and durability
Installation method: Standard wall-mounted metal plate, supporting wall-mounted installation, installation is convenient and stable
Wide temperature range operation: Working temperature range -20℃ to 70℃, suitable for indoor and semi-outdoor environments
Protection level: The entire machine can reach IP54 or higher protection level, dustproof and splash-proof
Interfaces and network: Seamless integration with existing systems
Communication method
Wired Network: RJ45 100/1000 Mbps Ethernet ports
Wireless Network: Optional Wi-Fi (2.4G/5G dual-band) or 4G all-network module, suitable for scenarios with inconvenient wiring
USB Interface: Supports importing and exporting personnel data and firmware upgrade via USB drive
Access Control Interface
Wiegand input/output (Wiegand 26/34), compatible with mainstream access control controllers
RS485/RS232 Serial Ports: Expandable for external devices such as ID card readers and QR code scanners
Relay Output: Directly control the opening of electric locks
| 10.1-Inch QR Code + Face Recognition Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 10.1 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93% RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
